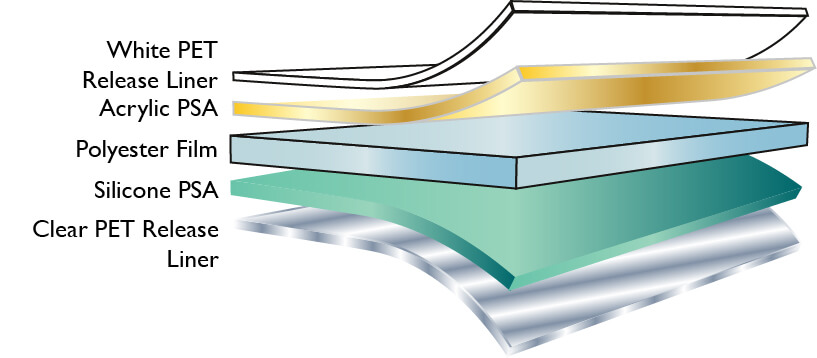

PS-1340 is a differential coated polyester film. The coated two side tape utilizes an acrylic adhesive on one side of the polyester carrier and a silicone pressure sensitive adhesive on the reverse side of the film carrier.
General Industrial
PS-1340
• Excellent Tack
• Good Resistance to Heat and Humidity
• Excellent Adhesion to Low Surface Energy Substrates
• Good Resistance to Heat and Humidity
• Excellent Adhesion to Low Surface Energy Substrates
| Property | Value | Test Method |
|---|---|---|
| Total Thickness | 0.10mm | QSP-726 |
| Acrylic Adhesive Thickness | 0.030mm | QSP-726 |
| Polyester Carrier Thickness | 0.025mm | QSP-726 |
| Silicone Adhesive Thickness | 0.045mm | QSP-726 |
| Acrylic PSA Liner | 0.050mm white polyester | Visual |
| Silicone PSA Liner | 0.050mm clear polyester | Visual |
| Adhesive Peel Strength | Acrylic PSA 1300 g/25mm | QSP-722 |
| Silicone PSA 1100 g/25mm | QSP-722 | |
| Tensile Strength, yield | 7000 g/in | ASTM D882 |
| Continuous Use Conditions | <120 C | QSP-754 |
